Over the past 10 years, CYDAREX has developed a series of equipment to teach conventional (CCA) and special core analysis (SCAL). This equipment and the know-how are...
More Information
In CYDAR 2017, we are introducing a new dispersion / tracer module. Dispersion experiments give indication on the homogeneity of the sample, by analyzing dispersion of...
More Information
In CYDAR 2017, we are introducing a new Two-Phase flow module with EOR (Enhanced Oil Recovery), to simulate the effects of polymers and surfactants on Two-Phase Flow...
More InformationCompany Profile
CYDAREX is a spin-off company of the French Institute of Petroleum (now IFPEN) and was created in 2005 by Roland Lenormand. CYDAREX specializes in the domain of core and cuttings analysis, and provides consulting and training services, commercializes the SCAL devices DarcyPress™ and DarcyLog, and develops the software CYDAR™.
Consulting & Training
With more than 40 years of experience, Roland Lenormand, PhD, provides consulting and training services in design, interpretation, supervision, and audit in Special Core Analysis (SCAL).
We have developed a one-week hands-on training on conventional and special core analysis, based on real experiments. All equipments have been costom-designed to allow measurements with in a few hours. Equipment and know-how is available for purchase.
Cuttings and small rocks
Measurements on cuttings and small rock samples can improve reservoir characterization when cores are not available.
DarcyPress™ allows measurements of gas permeability under confining pressure on small rock samples (5-10 mm), with permeabilities ranging from 0.1 nanoDarcy (10-22 m2) to 10 Darcy. Giving access to very low permeabilities, DarcyPress™ is ideal for measurements on shales.

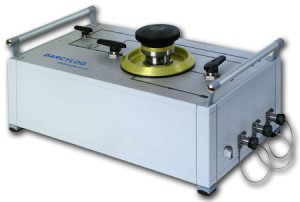

DarcyLog allows measurements of permeability on drill cuttings, with sample size ranging from 1 to 5 mm, and permeability ranging from 0.05 to 100 mDarcy.
Software for Core Analysis CYDAR
Developed in collaboration with core analysis specialists, the software CYDAR™ offers a powerful solution for design and interpretation of conventional and special core analysis experiments. This Windows-based software is designed to be user-friendly, yet accurate and powerful. CYDAR™ covers a full range of experiment types, including:
► Mercury injection and withdrawal (MICP)
► Absolute permeability measurements
► Dispersion measurements
► Centrifuge (Pc and Kr) and two-phase flow experiments
► Relative permeability (steady and unsteady state)
► Electrical Measurements
► EOR – Enhanced Oil Recovery
► Automatic reporting
► Data acquisition
CYDAR™ is now used by more than 50 companies and universities worldwide.
